Cabo de fibra óptica |Catálogo de Produtos

Consulta rápida

Obtenha o preço, embalagem, amostra grátis e muito mais agora!

baixar PDF

Type

FTTH

Metropolitan Area Network
Access Network

Backbone Network

Drop

Distribution

Feeder

Duct

Aerial

S-S

Duct

Aerial

S-S

U-W

Buried

Aerial

S-S

U-W

ADSS-SJ

√

ADSS-DJ

√

GJXH

√

GJXFH

√

GJYXCH

√

GJYXFCH

√

GJXDH

√

GJXFDH

√

GJYXDCH

√

GJYXFDCH

√

GJYXFHA

√

GJYXFHS

√

GJYXFH53

√

GYTA

√

GYTS

√

GYFS

√

GYTY53

√

GYFY53

√

GYTS54

√

GYTA53

√

GYTS53

√

GYTA33/333

√

GYTS33/333

√

GYTA53+33/333

√

GYFTY

√

GYFTA(S)

√

GYFTY63

√

GYFY63

√

GYFTA53

√

GYXTY

√

GYFXTY

√

GYXTW

√

GYDTA

√

GYDXTW

√

GYTC8A(S)

√

GYFTC8A(S)

√

GYFC8Y

√

GYFC8Y53

√

GYXTC8A(S)

√

Dielectric Single Jacket ADSS

NO.

NAME

ADSS-SJ-80

Single Jacket ADSS G.652D span 80m

ADSS-SJ-100

Single Jacket ADSS G.652D span 100m

ADSS-SJ-120

Single Jacket ADSS G.652D span 120m

ADSS-SJ-200

Single Jacket ADSS G.652D span 200m

ADSS-SJ-300

Single Jacket ADSS G.652D span 300m

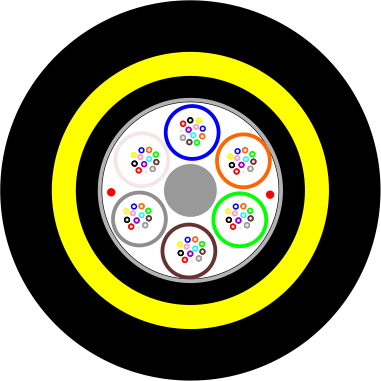

Dielectric Double Jacket ADSS

NO.

NAME

ADSS-DJ-150

Double Jacket ADSS G.652D span 150m

ADSS-DJ-200

Double Jacket ADSS G.652D span 200m

ADSS-DJ-300

Double Jacket ADSS G.652D span 300m

ADSS-DJ-500

Double Jacket ADSS G.652D span 500m

ADSS-DJ-800

Double Jacket ADSS G.652D span 800m

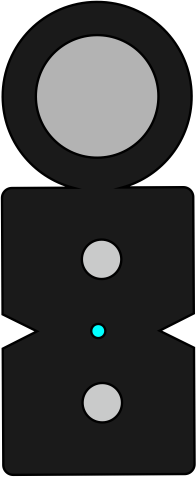

(Steel) Self-Supporting Drop Cable

NO.

NAME

GJYXCH-1

GJYXCH-1 G657A (Steel) Self-Supporting Drop cable

GJYXCH-2

GJYXCH-2 G657A (Steel) Self-Supporting Drop cable

GJYXCH-4

GJYXCH-4 G657A (Steel) Self-Supporting Drop cable

Self-Supporting GFRP Drop Cable

NO.

NAME

GJYXFCH-1

GJYXFCH-1 G657A (Steel) Self-Supporting GFRP Drop cable

GJYXFCH-2

GJYXFCH-2 G657A (Steel) Self-Supporting GFRP Drop cable

GJYXFCH-4

GJYXFCH-4 G657A (Steel) Self-Supporting GFRP Drop cable

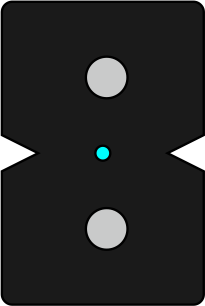

(Steel) Drop Cable

NO.

NAME

GJXH-1

GJXH-1 G657A (Steel) Drop Cable

GJXH-2

GJXH-2 G657A (Steel) Drop Cable

GJXH-4

GJXH-4 G657A (Steel) Drop Cable

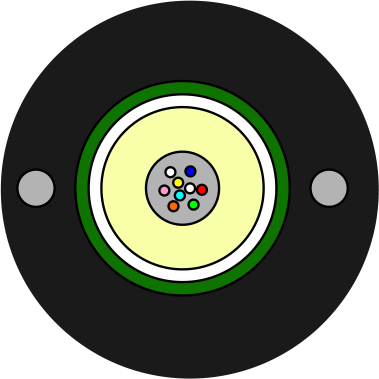

Unitube Light-armored Cable

NO.

NAME

GYXTW-4

Unitube Light-armored Cable GYXTW 4 cores G.652D

GYXTW-6

Unitube Light-armored Cable GYXTW 6 cores G.652D

GYXTW-8

Unitube Light-armored Cable GYXTW 8 cores G.652D

GYXTW-10

Unitube Light-armored Cable GYXTW 10 cores G.652D

GYXTW-12

Unitube Light-armored Cable GYXTW 12 cores G.652D

Double Sheathed Cable

NO.

NAME

GYXTW53-4

Double Sheathed Cable GYXTW53 4 cores G.652D

GYXTW53-6

Double Sheathed Cable GYXTW53 6 cores G.652D

GYXTW53-8

Double Sheathed Cable GYXTW53 8 cores G.652D

GYXTW53-10

Double Sheathed Cable GYXTW53 10 cores G.652D

GYXTW53-12

Double Sheathed Cable GYXTW53 12 cores G.652D

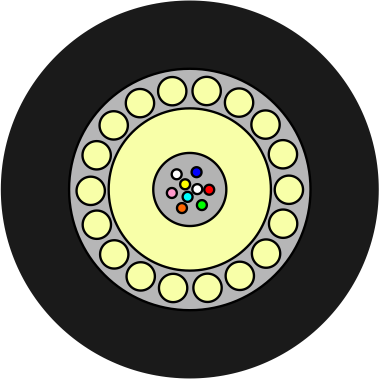

Steel wires Armored Cable

NO.

NAME

GYFXTY-4

Steel wires Armored GYXTW53 4 cores G.652D

GYFXTY-6

Steel wires Armored GYXTW53 6 cores G.652D

GYFXTY-8

Steel wires Armored GYXTW53 8 cores G.652D

GYFXTY-10

Steel wires Armored GYXTW53 10 cores G.652D

GYFXTY-12

Steel wires Armored GYXTW53 12 cores G.652D

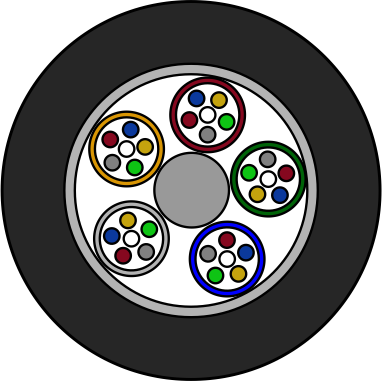

Stranded Loose Tube Cable

NO.

NAME

GYTA 2-48

Stranded Loose Tube Cable GYTA 2-48 cores G.652D

GYTA > 48

Stranded Loose Tube Cable GYTA > 48 cores G.652D

GYTS 2-48

Stranded Loose Tube Cable GYTS 2-48 cores G.652D

GYTS > 48

Stranded Loose Tube Cable GYTS > 48 cores G.652D

GYFTY 2-48

Stranded Loose Tube Cable GYFTY 2-48 cores G.652D

GYFTY > 48

Stranded Loose Tube Cable GYFTY > 48 cores G.652D

UG Double Sheathed Cable

NO.

NAME

GYTA53 2-48

UG Double Sheathed Cable GYTA53 2-48 cores G.652D

GYTA53 > 48

UG Double Sheathed Cable GYTA53 > 48 cores G.652D

GYTS53 2-48

UG Double Sheathed Cable GYTS53 2-48 cores G.652D

GYTS53 > 48

UG Double Sheathed Cable GYTS53 > 48 cores G.652D

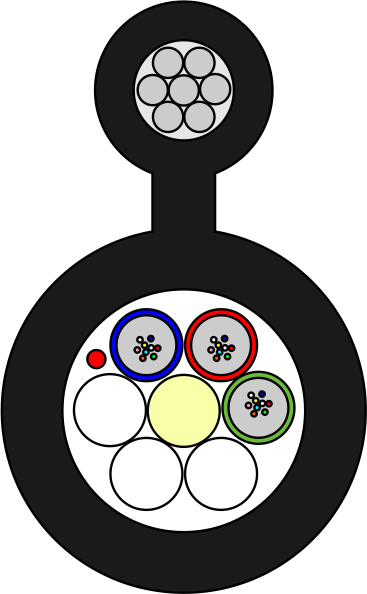

Figure 8 Cable

NO.

NAME

GYXTC-8S

Figure 8 Cable GYXTC-8S 2-6 cores G.652D

GYTC-8S

Figure 8 Cable GYTC-8S G.652D

GYTC-8A

Figure 8 Cable GYTC-8A G.652D

GYTS-8S

Figure 8 Cable GYTS-8S G.652D

GYTA-8S

Figure 8 Cable GYTA-8S G.652D

Fibers Color Standard Sequence
No.	1	2	3	4	5	6
Color	Blue	Orange	Green	Brown	Gray	White(Natural)
No.	7	8	9	10	11	12
Color	Red	Black	Yellow	Violet	Pink	Aqua

Tubes Color Standard Sequence
No.	1	2	3	4	5	6
Color	Blue	Orange	Green	Brown	Gray	White(Natural)
No.	7	8	9	10	11	12
Color	Red	Black	Yellow	Violet	Pink	Aqua

Tigh Buffer Fibers Color Standard Sequence
No.	1	2	3	4	5	6
Color	Blue	Orange	Green	Brown	Gray	White(Natural)
No.	7	8	9	10	11	12
Color	Red	Black	Yellow	Violet	Pink	Aqua

Indoor Fiber Optic Cable Color Standard Sequence

Colors of Cable Sheaths comply with YD/T1258
Default color for single-mode fibre: Yellow; Default color for multimodefibre: Orange

Note: Color arrangement can be customized.

Category	Description		G.652.D Normal	G.652.D Best	G.657.A1	G.657.A2	Unit/单位 Unidade
Transmission Characteristics 传输特性 Características de transmissão	850nm (multimode optical fiber communication system) O:1260-1360(237.9-220.4THZ) E: 1360-1460 (the least commonly used, the attenuation is large) (220.4-205.3) frequency range S:1460-1530 (commonly used in PON system) (205.3-195.9) C: 1530-1565 (minimum attenuation) (195.9-191.6) L: 1565-1625 (2nd lowest attenuation) (191.6-184.5) U: 1625-1675 (mainly used for network monitoring) (184.5-179.0) Attenuation Coefficient	@1310 nm	≤0.35	≤0.34	≤0.34	≤0.34	dB/km
		@1285-1330 nm		≤0.37	≤0.37	≤0.37	dB/km
		@1383 nm(after hydrogen aging)氢老化后（水峰衰减）	≤0.30	≤0.30	≤0.31	≤0.31	dB/km
		@1460 nm
		@1490 nm	≤0.24		≤0.23	≤0.23	dB/km
		@1550 nm	≤0.22	≤0.21	≤0.2	≤0.2	dB/km
		@1525-1575 nm		≤0.22	≤0.21	≤0.21	dB/km
		@1625 nm	≤0.25	≤0.24	≤0.22	≤0.22	dB/km
	Mode Field Diameter 模场直径	@1310 nm	8.6±0.4	9.0±0.4	9.0±0.3	8.6±0.4	µm
	Mode Field Diameter 模场直径	@1550 nm	9.8±0.5	10.2±0.4	10.2±0.4	9.6±0.5	µm
	Cable Cut-off wavelength(λ cc) 光缆截止波长		≤1260	≤1260	≤1260	≤1260	nm
	Zero Dispersion Wavelength 零色散波长		1300-1324	1300-1324	1300-1324	1300-1324	nm
	Zero Dispersion Slope 零色散斜率		≤0.092	≤0.092	≤0.09	≤0.09	ps/nm²/km
	Dispersion Coefficient 色散系数	@1285-1339 nm		≤3.4	≤3	≤3.4	ps/(nm·km)
		@1271-1360 nm		≤5.3			ps/(nm·km)
		1525-1575nm
		1530-1565nm
		1565-1625nm
		@1550 nm	≤ 18	≤ 18	≤ 17	≤ 18	ps/(nm·km)
		@1625 nm	≤ 22	≤ 22	≤ 21	≤ 22	ps/(nm·km)
	PMD Maximum Individual Fiber 偏正模色散单根光纤		≤0.1	≤0.1	≤0.1	≤0.1	ps√km
	PMD Link Design Value 偏正模色散链路设计值		≤0.06	≤0.06	≤0.06	≤0.06	ps/√km
	Point Discontinuity 点不连续性	@1310 nm, @1550 nm	≤0.05	≤0.05	≤0.05	≤0.05	dB
	EGRI Effective Group Refractive Index 有效群折射率	@1310 nm		1.4671	1.4671	1.4676
		@1550 nm		1.4675	1.4675	1.4683
		@1625 nm		1.468	1.468	1.4685
	Macro Bending Loss 宏观弯曲损耗 A1 弯曲半径10mm A2 弯曲半径7.5mm B2 弯曲半径7.5mm B3 弯曲半径5mm	10turns of 15mm radius			≤0.25	≤0.03	@1550 nm dB
		100turns of 25mm radius
		1turns of 16mm radius			≤0.25	≤0.03
		1turns of 10mm radius			≤0.75	≤0.1
		1turns of 7.5mm radius				≤0.2
		1turns of 5mm radius
		100turns of 30mm radius	≤0.05	≤0.05			@1625 nm dB
		100turns of 25mm radius
		10turns of 15mm radius			≤1.0	≤0.1
		1turns of 10mm radius			≤1.5	≤0.2
		1turns of 7.5mm radius				≤0.5
		1turns of 5mm radius
Category	Description		G.652.D 常规	G.652.D 品牌1	G.657.A1	G.657.A2	Unit/单位 Unidade
Dimensions 几何参数 Dimensões	Cladding Diameter 包层直径		125±0.7	125±0.5	125±0.5	125±0.5	µm
	Core / Cladding Concentricity Error 芯/包层同心度误差		≤0.5	≤0.4	≤0.4	≤0.4	µm
	Cladding Non-circularity 包层不圆度百分比		≤1.0	≤0.7	≤0.7	≤0.7	%
	Coating Diameter 涂覆层直径		245±5	245±5	242±5	242±5	µm
	Coating / Cladding Concentricity Error涂覆层/包层同心度误差		≤12	≤12	≤8	≤8	µm
Mechanical Characteristics 机械性能 Características mecânicas	Proof Test 张力筛选试验	Fiber Strain 纤维应变	≥1	≥1	≥1	≥1	%
		Fiber Load 光纤负载	≥9	≥9	≥9	≥9	N
		Stress 压强	≥100	≥100	≥100	≥100	kpsi
	Dynamic Stress Corrosion Susceptibility Factor 动态疲劳参数	Unaged &Aged(30 days@85℃，85%R.H.)	≥20	≥20	≥20	≥20
	Coating Strip Force 涂层剥离力	Peak Value 峰值	1.3-8.9	1.3-8.9	1.3-8.9	1.3-8.9	N
	Fiber Curl 光纤翘曲半径		≥4	≥4	≥4	≥4	m
Environmental Characteristics 环境性能 Características ambientais	Dry heat aging干热(30days@85℃)	@1310 nm, @1550 nm	≤0.05	≤0.05	≤0.05	≤0.05	dB/km
	Accelerated ageing 湿热(30days@85℃，85%R.H.)	@1310 nm, @1550 nm	≤0.05	≤0.05	≤0.05	≤0.05	dB/km
	Temperature Cycling温度循环 (-60℃- +85℃)	@1310 nm, @1550 nm	≤0.05	≤0.05	≤0.05	≤0.05	dB/km
	Water Soak浸水(30days@23℃)	@1310 nm, @1550 nm	≤0.05	≤0.05	≤0.05	≤0.05	dB/km

Classe	Membro de força	Características estruturais	Bainha	Bainha externa	Tipo de fibra
GY-Exterior	(vazio)-metálico	fita de fibra D	Bainha Y-PE	Armadura de 33 fios de aço + PE	B1-G652
GL-Micro trincheira	F-FRP	Núcleo com ranhura G	A-Fita de Alumínio+PE	53-Armadura de fita de aço + PE	B1.3-G652D
GP-Esgoto	Fios de H-aramida	X-Uni-tubo	S-fita de aço + PE	54-Armadura de fita de aço + PE + bainha de nylon	B4-G655
	G-fios de fibra de vidro	Preenchido com Composto T	W-fita de aço + PE + 2 fios de aço	63-armadura de fio de fibra de vidro + PE	B6-G657
	A-aramida fios	(void)-bloqueio de água seca	F-Fita de fibra de vidro + PE	333-Armadura de fio de aço duplo + PE	B6a2-G657A2
		C-Auto-sustentável			A1a-50/125μm
		Z-retardador de chama			A1b-62,5/125μm
		B-formato plano
		8-Figura 8

Classe	Membro de força	Características estruturais	Bainha	Tipo de fibra
GJX-Fiação interna	(vazio)-metálico	fita de fibra D	H-LSZH	B6-G657
GJYX-Outdoor Drop	F-FRP	C-Auto-sustentável		B6a2-G657A2

Classe	Escopo do Aplicativo	Membro de força	Características estruturais	Bainha	Tipo de fibra
GJ-Interior	Ramo B	F-Não Metálico	Tampão J-Tigh	H-LSZH	B1.3-G652D
	P-Pacote		B-formato plano	V-PVC	B4-G655
	D-fita			U-PU	B6-G657
					B6a2-G657A2

Regras de nomenclatura para cabos de fibra óptica

Regras de nomenclatura dos cabos de fibra óptica da planta externa

Regras de Nomenclatura de Cabos de Fibra Óptica Drop

Regras de nomenclatura de cabos de fibra óptica internos

Recomendações para cabos de fibra óptica convencionais

Tipos de cabos de fibra óptica convencionais

A estrutura dos cabos de fibra óptica convencionais

Regras de arranjo de cores para fibra óptica e cabo de fibra óptica interna

As propriedades da fibra óptica monomodo
